Technical Specifications

• Maximum detection range:             ≥5000m

• Deformation accuracy:                     ≤0.1mm

• Maximum coverage angle:             360°×40°

• Remote antenna pitch adjustment: ≥±30°

• Range resolution:                             ≤0.2m

• Azimuth resolution:                         ≤7.5mrad

• Data update rate:                             1.5 times/minute

• Power consumption:                         ≤40W

• Weight:                                             ≤8kg

• Maximum folded size:                      ≤0.5m

Main Features

• The deformation measurement boasts high precision and fast data update rate, with all-weather and day/night operational capabilities.


• The system employs FMCW arc SAR imaging technology, enabling 360° omnidirectional monitoring without blind spots in angle or distance.


• It featurs edge computing architecture, and data processing is completed on-board. Moreover, The equipment can integrate a satellite compass and wireless router for standalone deployment.


• The antenna pitch angle can be remote-controlled, adapting to flexible monitoring in steep mountain valleys with significant elevation differences.

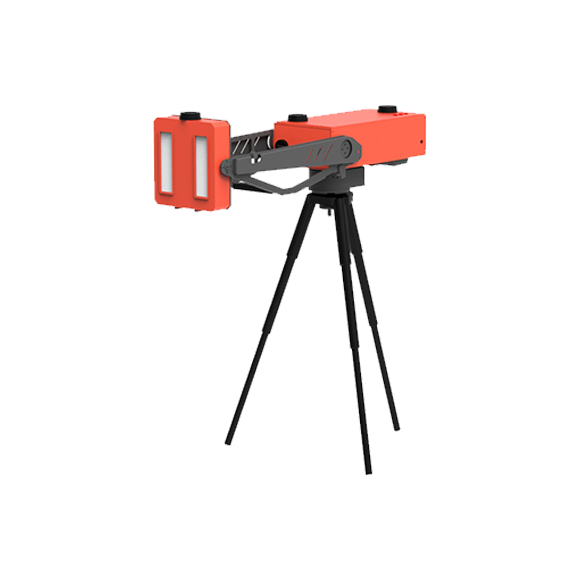

• Ultra-lightweight and portable, weighing only 8kg, it can be carried by a single person for rapid deployment. When folded, it meets civil aviation requirements for on-the-go luggage.

• The monitoring software adopts a B/S architecture, supporting local on-site monitoring via LAN/WiFi, as well as cloud server monitoring through 4G/5G mobile networks.
